Authentication

Abstract⚓︎

  1. PAM, NSS and SSSD are present locally on the OS.

  2. Any call made to OS for authenticating or authorization results in a call to PAM/NSS SSSD responders then eventually to AD or LDAP.

  3. SSSD is configured in sssd.conf to contact AD for authentication

  4. SSSD can maintain AD id-mapping cache locally on the OS but we didn't use that option in our setting.

  5. SSSD will lookup both in the external source and locally to get user -> password or user name to -> uid , uid-> username, group name to gid, gid-> group name etc.

Workflow:

  1. configure the sssd.conf and add nss and pam as responders

  2. configure nsswitch.conf to be compatable with SSS

  3. use pam-config tool to seamlessly add SSS to pam modules/lib  without breaking anything.

  4. now everything will go through SSSD through the responders

The SSSD daemon (Running locally on the Linux OS) will control the login process. The login program communicates with the configured pam and nss modules, which in this case are provided by the SSSD package. These modules communicate with the corresponding SSSD responders, which in turn talk to the SSSD Monitor.
SSSD looks up the user in the AD directory.

NSS is there to enumerate information from ad about services/users (what group you belong to, where your home directory is etc). PAM determines what to do about that information. and all of that is under SSSD.

Local:

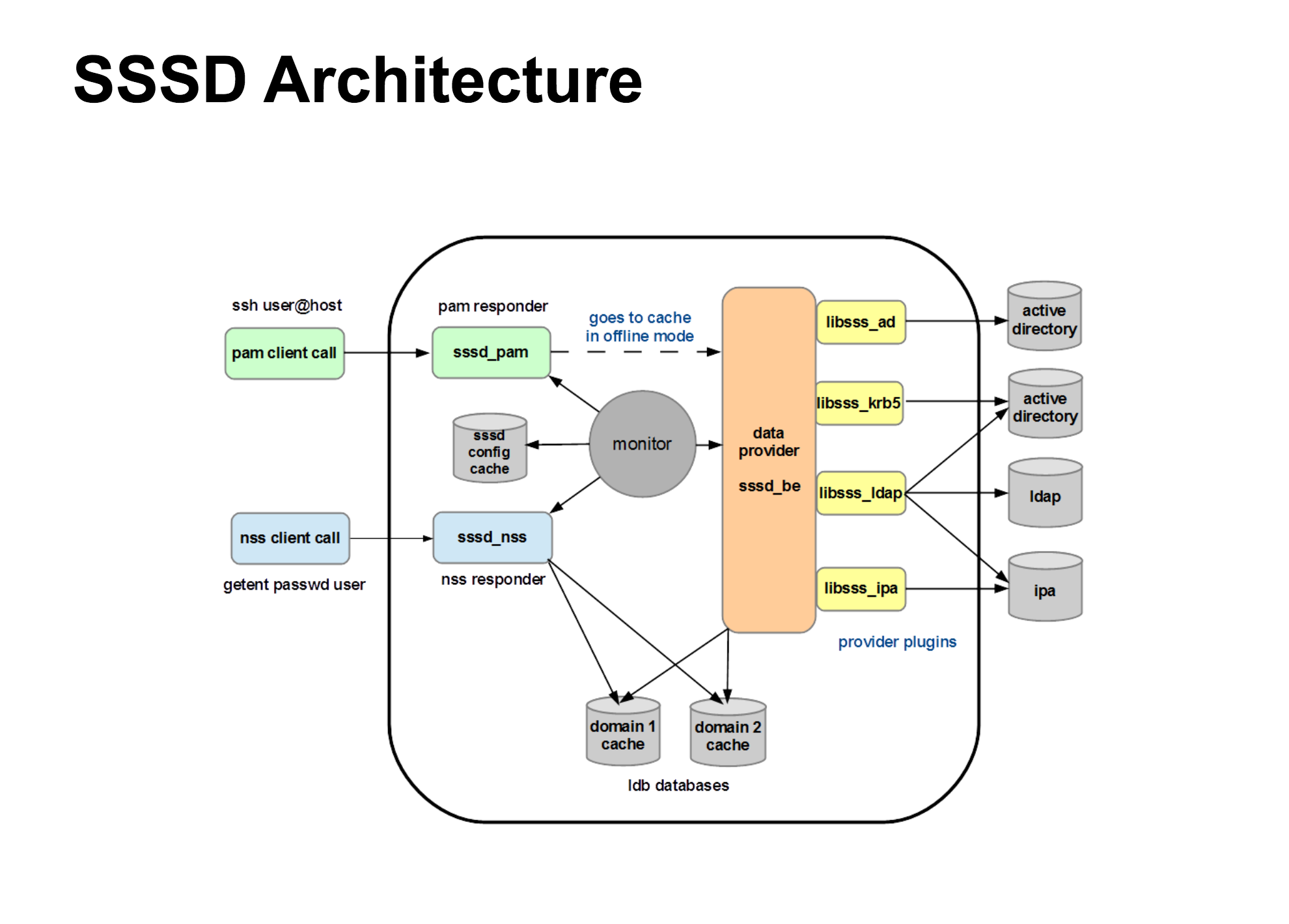

how SSSD work with PAM, NSS,krb5 and AD:

  • SSSD

  • NSS

  • PAM

  • krb5

SSSD: System Security Services Daemon⚓︎

since pam and nss are complex to configure with no offline auth capability. traditional Linux auth we can authenticate locally and one and only one remote source whether ldap or krb5

we can use SSSD we can authenticate to multiple identity stores  and it works as a gateway of some sort which allows us to use a central location for different services in a single conf file

SSSD uses a parent/child process monitoring model:
[sssd] Parent process, Monitor
[nss] [pam] Child process, Responder
[domain/AD] Child process, Provider

SSSD configuration is found in /etc/sssd/sssd.conf

sssd.conf example

[sssd]   #the monitor
config_file_version = 2
domains = < domain> #specify the authentication domains that this daemon is going to serve
services = nss, pam    #indicate which responders to invoke

[nss]  #the responder which is a child process or the monitor
filter_groups = root guest
filter_users = root guest #the local users that the sssd should not return in a search
reconnection_retries = 5 #how many the monitor will restart the responder if it crashed

[pam] #the responder which is a child process or the monitor
reconnection_retries = 5 #how many the monitor will restart the responder if it crashed

[domain/< domain>] #have to match the name mentioned above in the domains option
enumerate = False   #if it true the daemon will cache all the data which can take a lot of time
cache_credentials = False   #if true it will allow users to log in if the authentication source goes offline
case_sensitive = False   #if true can impose some usability issues
use_fully_qualified_names = False
ignore_group_members = True
ldap_purge_cache_timeout = 0
dns_discovery_domain = < domain>     id_provider = ad   #we will use ad provider to lookup the ids
auth_provider = ad #we authenticate against Active Directory
ad_domain = < domain>
ad_enabled_domains = < domain>
ad_site = < physical location>
ad_server = dc1,dc2,dc3
dyndns_update = False
ldap_id_mapping = True
ldap_schema = ad #the daemon understand the Active Directory schema
ldap_search_base = DC=< interal>,DC=< uk>,     override_homedir = /home/%u  #this will create a sub-directory for the user
fallback_homedir = /home/%u
default_shell = /bin/bash
min_id = 10000
krb5_ccname_template=FILE:%d/krb5cc_%U
debug_level = 7 #it can be from 0 to 9

logs : /var/log/sssd/

cache: /var/lib/sss/db/

NSS: Name Service Switch⚓︎

The nsswitch. conf file commonly controls searches for users (in passwd), passwords (in shadow), host IP addresses, and group information and defines the search order of the network databases.

NSS - A module based system for controlling how various OS-level databases are assembled in memory. This includes (but is not limited to) passwd, group, shadow (this is important to note), and hosts. UID lookups use the passwd database, and GID lookups use the group database.

NSS conf are in /etc/nsswitch.conf

nsswitch.conf example

passwd:        compat sss
group:        compat sss

hosts:      files dns
networks:    files dns

services:    files
protocols:    files
rpc:        files
ethers:        files
netmasks:    files
netgroup:    files nis
publickey:    files

bootparams:    files
automount:    files nis
aliases:    files

Authselect⚓︎

Authselect is a tool to select system authentication and identity sources from a list of supported profiles. It is a replacement for authconfig

use  authselect list  to check current in place system authentication methods:

conf file in /etc/authselect/user-nsswitch.conf

user-nsswitch.conf Example
Text Only
#/etc/nsswitch.conf
#In order of likelihood of use to accelerate lookup.
passwd:      sss files systemd
shadow:     files sss
group:       sss files systemd
hosts:      files dns myhostname
services:   files sss
netgroup:   sss
automount:  files sss

aliases:    files
ethers:     files
gshadow:    files
#Allow initgroups to default to the setting for group.
#initgroups: files
networks:   files dns
protocols:  files
publickey:  files
rpc:        files

PAM: Pluggable Authentication Modules⚓︎

PAM - A module based system for allowing service based authentication and accounting. Unlike NSS, you are not extending existing databases; PAM modules can use whatever logic they like, though shell logins still depend on the passwd and group databases of NSS. (you always need UID/GID lookups).PAM does nothing on its own. If an application does not link against the PAM library and make calls to it.

several changes is done in  /etc/pam.d/ we added SSS module pam_sss.co

files that have the module are: common-account  common-auth  common-password  common session

PAM Modules Examples

account requisite pam_unix.so try_first_pass
account sufficient pam_localuser.so
account required pam_sss.so use_first_pass

auth required pam_env.so
auth sufficient pam_unix.so try_first_pass
auth required pam_sss.so use_first_pass

password requisite pam_cracklib.so
password sufficient pam_unix.so use_authtok nullok shadow try_first_pass
password required pam_sss.so use_authtok

session optional pam_mkhomedir.so umask=066
session optional pam_systemd.so
session required pam_limits.so
session required pam_unix.so try_first_pass
session optional pam_sss.so
session optional pam_umask.so
session optional pam_env.so

krb5 (Kerberos): Network Authentication Protocol⚓︎

Kerberos is used to authenticate entities requesting access to network resources, especially in large networks to support SSO.

our use case :

  1. to initially join the system to the domain and generate the key-tab file ( contains encoded credentials used by the Linux system itself to pre-authenticate  to active directory ).

  2. to allow normal active directory users to pre-authenticate to perform tasks that require a krb connections.

conf are in /etc/krb5.conf logs: /var/log/krb5/kadmind.log

krb5.conf Example

[libdefaults]
default_realm = < default realm>
clockskew = 600
dns_lookup_kdc = false
dns_lookup_realm = false
udp_preference_limit = 128
forwardable = true
default_ccache_name = FILE:/tmp/krb5cc_%{uid}

[realms]
= {
admin_server = default_domain = < default domain> kdc = kdc = kdc = master_kdc = }

[domain_realm]
< default domain> = < default domain>

[logging]
kdc = FILE:/var/log/krb5/krb5kdc.log
admin_server = FILE:/var/log/krb5/kadmind.log
default = SYSLOG:NOTICE:DAEMON

[appdefaults]
pam = {
ticket_lifetime = 1d
renew_lifetime = 1d
forwardable = true
proxiable = false
minimum_uid = 10000
clockskew = 300
external = sshd
use_shmem = sshd
}

Authentication process with krb5⚓︎

Steps for authentication to a remote server via krb5

  1. create a new keytab for easier login instead of repeatingly writing the password

    kadmin -p <username>

  2. authenticate using the keytab

    kinit <username> -k -t /root/<username>.keytab

  3. we check if the ticket is successfully cached using klist

  4. authenticate the machine to Active Directory

    adcli -v join -C --show-details

  5. in case we want to change the domain controller for any reason

    net ads join -k -S <domain-controller1>

NIS: Network Information Service⚓︎

it has a daemon nis-domainname.service  which Read and set NIS domainname from /etc/sysconfig/network

OpenLDAP⚓︎

useful for searching AD to validate ,objects attributes and values outside the context of the SSSD or MMC and it useful for troubleshooting AD connectivity issues.

  • LDAP clients like openldap that provides ldapsearch command /etc/openldap/ldap.conf
  • override the /etc/openldap/ldap.conf for user sessions /.ldaprc
  • LDAP daemon uses /etc/ldap.conf
  • SAMBA conf /etc/openldap/schema/samba.schema
ldap.conf Example

BASE DC=< interal>,DC=< uk>
URI ldap://192.168.xx.xx

TLS_REQCERT allow
TLS_CACERTDIR /etc/ssl/certs
TLS_CIPHER_SUITE AES256-SHA:xx-xx-xx

REFERRALS OFF #because active directory returns referrals that are only meaningful to other AD servers they are not meaningful to openLDAP systems or clients
SASL_NOCANON ON

CLI Query from AD⚓︎

wbinfo - Query information from winbind daemon

wbinfo -i < username >       #Get user info

wbinfo -S < SID >       #sid-to-uid
wbinfo -s < SID >       #sid-to-name
wbinfo -n < username >       #returns user SID

wbinfo -a < username >       #request password input for the user and the daemon will check with AD if is correct

wbinfo -n < group name >        #return group sid

wbinfo -Y < SID >    #sid-to-gid

wbinfo --all-domains   #current domain that we are part of

wbinfo -D < domain >   #Show most of the info we have about the domain

wbinfo -g  #show all groups

wbinfo --dc-info=< domain >  #show the currently known domain controllers

net.samba3 - Tool for administration of Samba and remote CIFS servers

net idmap check               #will give the local database status

net user info < username >       #groups associates with the user from AD

net groupmap list           # list the groups mapped locally *gpfs doesn't see the groups from AD

net ads info  -d 4    #info about our AD with increased debugging level to 4

net ads search sAMAccountName=ahnasr   #ALL user info from AD

net ads group   #list AD groups

net ads status

net ads keytab list #inspect keytab file that was created when the system joined the domain.

Useful

"adcli - Tool for performing actions on an Active Directory domain"
adcli info < domain >
adcli join -C #to join the domain after generating krb keytab

"ctdb - clustered tdb database management utility"
ctdb getdbmap

"getent - get entries from administrative database"
getent passwd < username >
getent sss

"LDAP query ldapsearch cn=< username >

"local query" id < username > groups< username >

Reset ID-Mapping in GPFS⚓︎

  1. First run the following commands

    systemctl stop gpfs-smb systemctl stop gpfs-winbind

  2. Go to /var/lib/gpfs-samba backup (just in case) and delete: msg.sock/winbindd_privileged/ netsamlogon_cache.tdb smbprofile.tdb winbindd_cache.tdb since this is where the old id-maps.

  3. Run commands

    systemctl start gpfs-smb systemctl start gpfs-winbind net conf import /etc/samba/smb.conf

  4. To initiate the new mapping run:
    wbinfo -i <username>  #this should give uid and primary gid

  5. Checks: You can use wbinfo -n <username>  to get the SID of a user, then net cache flush  and wbinfo -S <SID> which should show user uid.
